內襯氟硅膠鋼絲軟管FS30

東莞市格雷特硅膠制品有限公司

內襯氟硅膠鋼絲軟管FS30

Tellon lined silicone wire hose  FS30

注：1.標準生產長度為6米（特殊可(ke)訂做(zuo)10米），可(ke)以(yi)做(zuo)切短。其(qi)它(ta)的內徑要求(qiu)可(ke)以(yi)根據客戶的要求(qiu)來訂制。

    2.在我(wo)們在參數表中測試是依照常溫，標準大氣壓狀態。當壓力不(bu)變(bian)時，溫度每(mei)上升(sheng)幅(fu)度100度，壓力會下降百分之15。

REMARKS:

    1, Standard length is 6 meters or especially 10 meters and we can customize the hose length according to customers' needs.

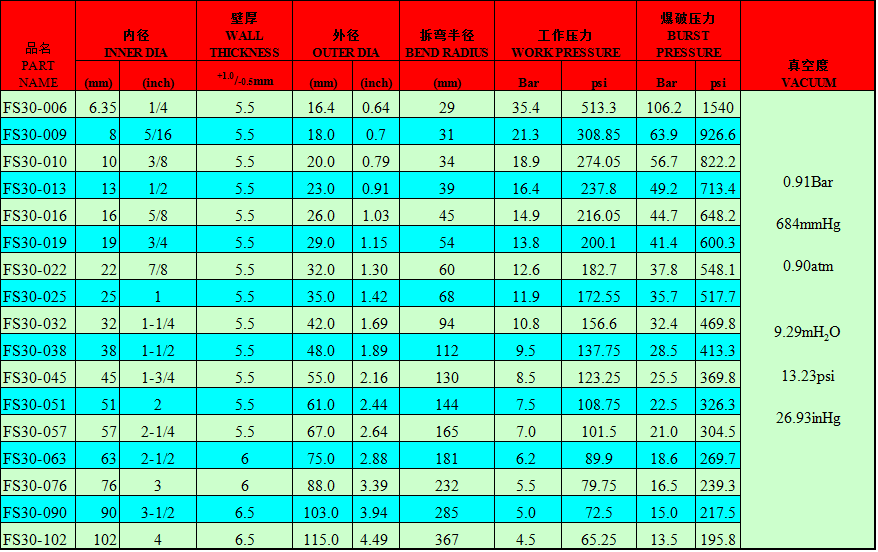

    2, The test in the parameter list is in accordance with the normal temperature and the standard atmospheric pressure state.

When the pressure is constant, the temperature rise by 100 degrees, the pressure will drop by 15%.

產(chan)品應用：

特別推薦用于具有耐油性(xing)能，符合食品級(ji)的要求，在化妝品類(lei)，食用油類(lei)，以及汽車類(lei)得到廣泛的應用。

具有(you)(you)不老化(hua)，有(you)(you)良好的耐腐性(xing)能(neng)，有(you)(you)良好的機械(xie)性(xing)能(neng)和物理性(xing)能(neng)。抗拉(la)性(xing)能(neng)好。

產品結構：

內層：內層為氟硅(gui)膠層（通常為乳白色或白色或黑色）

編織(zhi)：四層(ceng)層(ceng)夾布網紋編織(zhi)

鋼(gang)絲(si)：采用單層304不銹鋼(gang)絲(si)間距為(wei)5MM或不加鋼(gang)絲(si)，

產品(pin)特性：

——工作(zuo)溫度范圍‘-60oC / +180oC (-76oF / +356oF)在短時間內可(ke)達到  220oC (392oF)

——具(ju)有極好不(bu)老化，有良好的耐腐性(xing)(xing)能(neng)，有良好的機(ji)械性(xing)(xing)能(neng)和物理(li)性(xing)(xing)能(neng)。抗拉性(xing)(xing)能(neng)好.

品質(zhi)認證：

——硅(gui)膠軟(ruan)管通過美國FDA 21 CFR 177.2600(食(shi)品和藥物管理局(ju))食(shi)品級認證。

Product application:

Specially recommended for oil resistant properties, in compliance with the requirements of food grade.

Widely used in the industry of cosmetics, edible oil and automobiles with good aging resistance, good corrosion resistance,

good mechanical and physical properties and good tensile properties.

Product structure:

inner layer: fluorine rubber layer (usually milky white or white or black)

Weaving:4 layers of cloth woven mesh

Steel wire: single layer of 304 stainless steel wire, the spacing is 5mm or without wire added.

Product characteristics:

-The working temperature range: -60 to +180 degrees Celsius (or -76 to +356 degrees Fahrenheit) and it can reach 220 degrees Celsius (or 392 degree Fahrenheit) in a short period of time

-excellent aging resistance and corrosion resistance. Very good mechanical and phisical performance.Excellent tensile resistance.

Quality certification:

-silicone hose passes the United States FDA 21 CFR 177.2600 (food and Drug Administration) food grade certification.
