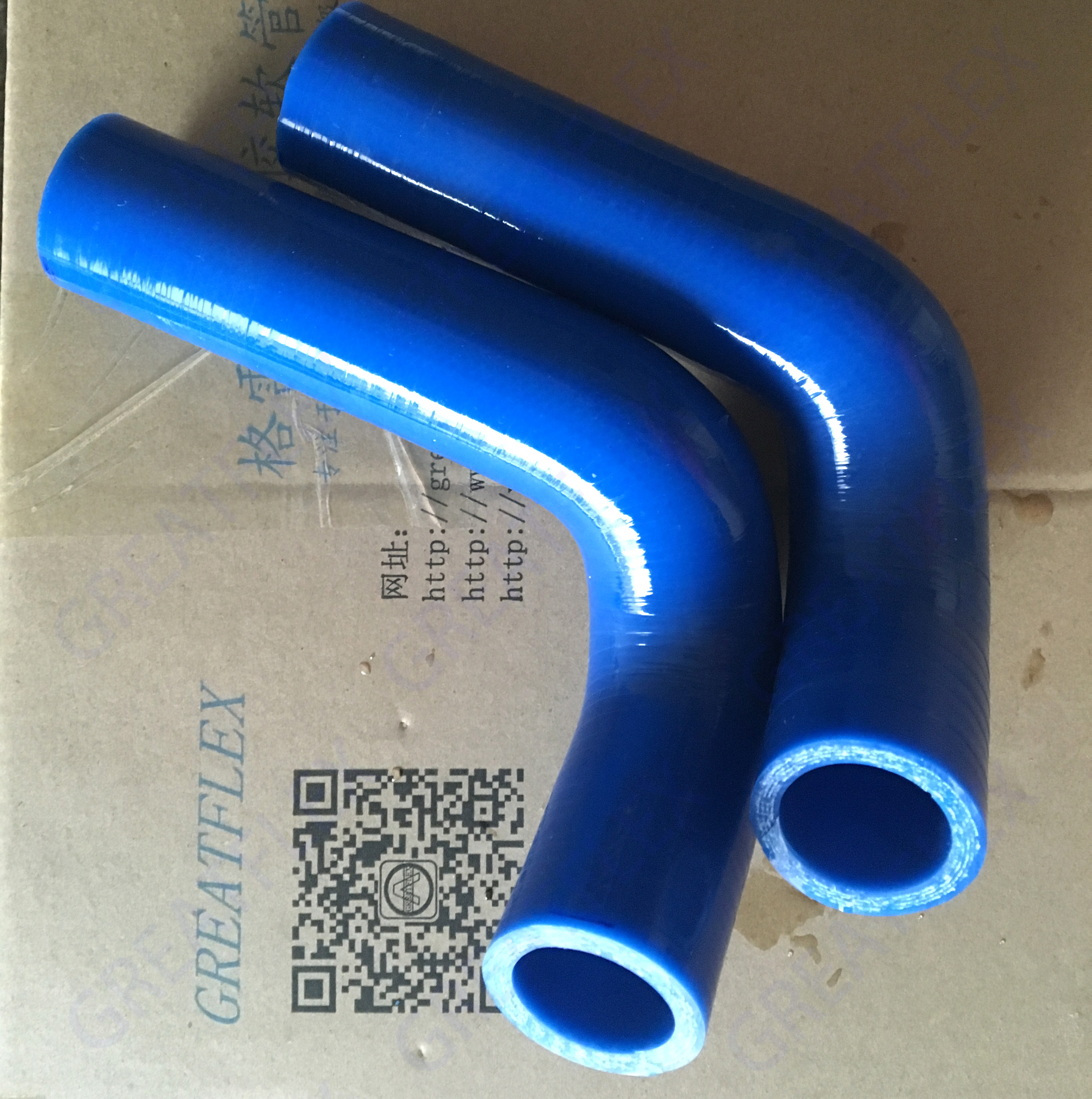

90度彎硅膠軟管EB90

產品應用：

本產品(pin)推(tui)薦(jian)應用于(yu)在高溫高壓時，可以(yi)過熱空氣(qi)和熱水，具有良好的耐(nai)(nai)溫性(xing)和耐(nai)(nai)腐性(xing)。

主要(yao)應(ying)用于公(gong)共汽(qi)車(che)，拖車(che)和一(yi)些特殊工況(kuang)下(xia)，同(tong)時(shi)可以應(ying)用于汽(qi)車(che)發(fa)動機。可做(zuo)為汽(qi)車(che)，貨柜車(che)，公(gong)共汽(qi)車(che)發(fa)動機的冷(leng)卻水(shui)管

產品特點：

-具有極好的壓縮

-組裝過程中(zhong)具(ju)有(you)良好(hao)的彎曲(qu)性和柔軟性能。

-內(nei)外表面光滑，可(ke)以做藍(lan)色(se)，紅色(se)和黑色(se)，同時還(huan)可(ke)以是(shi)可(ke)以根(gen)據客戶(hu)的(de)要求(qiu)來定做顏色(se)和不同規格的(de)長(chang)度。

-具(ju)有良好的耐溫性能，工作(zuo)溫度為-60 oC (-75 F) to +180oC (356 F），短(duan)時間(jian)的工作(zuo)溫度可以達到 200oC (392 F)

一般長(chang)度為100*100,150*150,200*200MM,如有特殊要(yao)求可以根(gen)據客戶的要(yao)求來(lai)定做.

---耐臭氧性,抗UV性能和(he)耐老(lao)化(hua)性能.

符合標準：

1.產品符合SAE J20R1 Class A的標準

2.硅膠軟(ruan)管符合歐洲(zhou)EU 2002/95/ECC 環(huan)保RoHS認證標準。

This product is especially recommended for the pressurized air or water conduction

at high temperatures, it can be used in vehicles and in the industrial sector.

For using in cooling and heating systems in buses, coaches, lorries and industrial

vehicles, cooling systems in cogeneration units and marine engines, and transport of

high temperature fluids in general industry.

It is recommended for connections in areas with limited space.

Properties

?Highly resistant to hardening with very good compression characteristics.

?Excellent flexibility during the assembly process.

?Smooth inner and outer appearance, and blue color. Upon request, it can also

be supplied in other colors.

?Operational temperature range from -60 oC (-75 F) to +180oC (356 F), it may

reach up to 200oC (392 F) during short periods of time.

?Manufactured with inner diameters ranging between 6mm and 100mm, usually

at angles of 90o  and standard arm lengths (L1 and L2) of

100x100mm, 150x150mm or 200x200mm, although they can be manufactured

in any diameter, angle or length required.

?Excellent resistance to thermal aging and oxidizing agents (oxygen, ozone, UV).

Regulations

?  Meets or exceeds operatingrequirements of SAE J20 R1Class A.

?  Silicone rubber used is in accordance with EU Directive 2002/95/ECC for Restriction of the use of hazardous substances (RoHS).
