鉑金硫化硅膠鋼絲軟管FP31

東莞(guan)市格(ge)雷特(te)硅膠制品(pin)有限公司

鉑金硫化硅膠鋼絲軟(ruan)管FP31

Platinum vulcanization silicone wire hose FP31

注(zhu)：1.標準生產(chan)長(chang)度為6米(mi)（特殊可訂(ding)做10米(mi)），可以做切短。其它(ta)的內徑要(yao)(yao)求(qiu)可以根據客(ke)戶的要(yao)(yao)求(qiu)來訂(ding)制(zhi)。

2.在我們在參數表中測試是依照常溫，標(biao)準大氣壓(ya)狀態。當(dang)壓(ya)力不變時，溫度(du)每上升幅度(du)100度(du)，壓(ya)力會下降百分之15。

REMARKS:

1, Standard length is 6 meters and we can customize the hose length according to customers' needs.

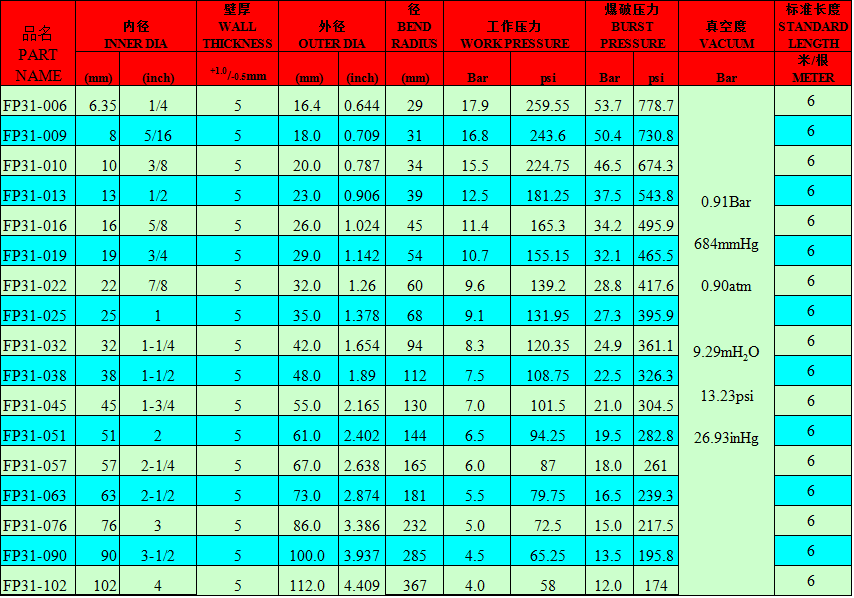

2, The test in the parameter list is in accordance with the normal temperature and the standard atmospheric pressure state.

When the pressure is constant, the temperature rise by 100 degrees, the pressure will drop by 15%.

產(chan)品應(ying)用：

特別推薦用(yong)于運輸或輸送(song)高低溫食品(pin)、化(hua)妝品(pin)、化(hua)工(gong)和(he)制藥行(xing)業(ye)和(he)生物工(gong)程用(yong)的液(ye)體或半液(ye)體流體.

（如抽吸食(shi)品(pin)類乳制品(pin)；食(shi)品(pin)機械設(she)備用(yong)(yong)連(lian)接(jie)管(guan)(guan)；酒類用(yong)(yong)連(lian)接(jie)導管(guan)(guan)；油類設(she)備抽吸用(yong)(yong)的(de)連(lian)接(jie)管(guan)(guan)，醫藥(yao)設(she)備連(lian)接(jie)管(guan)(guan)路、導管(guan)(guan)等）

產品結構(gou)：

編(bian)織：四層夾布網紋(wen)編(bian)織

鋼絲(si)(si)：采用單層304不銹鋼絲(si)(si)，間(jian)距為10MM

產品特性：

——工作溫度范圍‘-60oC / +180oC (-76oF / +356oF)在短時間(jian)內(nei)可達到(dao)  220oC (392oF)

——具有很好彎曲性，內壁光滑清(qing)潔，易清(qing)洗不(bu)粘水，用清(qing)洗物(wu)清(qing)洗后不(bu)附著任何殘留(liu)物(wu)，可采用高溫(wen)高壓蒸汽消毒和滅(mie)菌。

——無嗅(xiu)、無味,完(wan)全(quan)無毒，不含任何塑化劑和添加(jia)劑成(cheng)分(fen)。完(wan)全(quan)符合食品FDA和生(sheng)物醫用級USP的要(yao)求。

——產品經過高(gao)溫180oC*4小時高(gao)溫硫化后(hou)，不分產生任何(he)分解物，承(cheng)正負壓能力(li)強，具體參(can)考數據表。

配套接頭：

TC接頭(tou)（直通快(kuai)(kuai)速接頭(tou)316L），SMS接頭(tou)，DIN快(kuai)(kuai)接，CLAMP，CLOCK，J螺(luo)紋(wen)接頭(tou)，等材(cai)質為304或316L任(ren)客戶挑(tiao)選。

品(pin)質(zhi)認證：

——鉑金(jin)硅膠軟管(guan)通過(guo)美國(guo)FDA 21 CFR 177.2600(食(shi)品(pin)和藥物(wu)管(guan)理局)食(shi)品(pin)級認證。

——鉑金硅膠軟管通過德國FDA/BfR零件 XV標準認(ren)證和LFBG和BGVV標準認(ren)證。

——鉑金硅膠軟管(guan)符合通(tong)過美國醫用USP Class VI級標準認證。

——鉑金硅膠管依照(zhao)歐盟指令2008/95 / ECC的限(xian)制使用(yong)某(mou)些有(you)害(hai)物質(RoHS)認可(ke)。

Product application:

Widely used for transportation or delivery of low temperature food, cosmetics, chemical materials or the fluid or semi liquid fluid of pharmaceutical industry and biological engineering.

(such as the suction of food or dairy products; the connection hoses used on food machinery

liquor equipment; oil production equipment and medical equipment, etc.)

Product structure:

Weaving: 4 layers of cloth woven mesh

Steel wire: single layer of 304 stainless steel wire, the spacing is 10mm

Product characteristics:

-The working temperature range: -60 to +180 degrees Celsius (or -76 to +356 degrees Fahrenheit) and it can reach 220 degrees Celsius (or 392 degree Fahrenheit) in a short period of time

-With a good bend, the inner wall is smooth and clean, easy to be washed, no water sticking,

After cleaned by cleaning materials, no residue remained. The steam disinfection and sterilization can be done under high temperature and high pressure.

-Odorless, tasteless, non-toxic, does not contain any additives and plasticizer. Fully comply with the requirements of food FDA and biological medical grade USP.

-Product will not produce any decomposition after high temperature of 180 degrees Celsius * 4 hours of high temperature Vulcanization with strong bearing capacity of negative and positive pressure.

Supporting connectors:

TC connector (straight quick connector 316L), SMS connector, DIN quick connect, CLAMP, CLOCK, J threading connectors, etc,.The material is stainless steel 304 or 316L.

Quality certification:

-Platinum silicone hose passes the United States FDA 21 CFR 177.2600 (food and Drug Administration) food grade certification.

-Platinum silicone hose passes the German FDA/BFR parts XV standard certification and LFBG and BGVV standard certification.

-Platinum silicone hose in accordance with the United States Class VI USP grade standard certification.

-Platinum silicone hose has passed the certificate of limitation usage of hazardous substances (RoHS) in accordance with the EU directive 2008/95/ECC
