內襯氟硅膠鋼絲軟管FS30

東莞市格雷特硅膠制品有限公司

內襯氟硅膠鋼絲軟管FS30

Tellon lined silicone wire hose  FS30

注：1.標準生產長度為6米（特殊可(ke)訂做10米），可(ke)以做切短。其它(ta)的內徑要求可(ke)以根據客戶(hu)的要求來訂制(zhi)。

    2.在我們在參數表中測試(shi)是依照常(chang)溫，標準大氣壓(ya)狀態。當壓(ya)力(li)不變時，溫度每上(shang)升幅(fu)度100度，壓(ya)力(li)會(hui)下降15%。

REMARKS:

    1, Standard length is 6 meters or especially 10 meters and we can customize the hose length according to customers' needs.

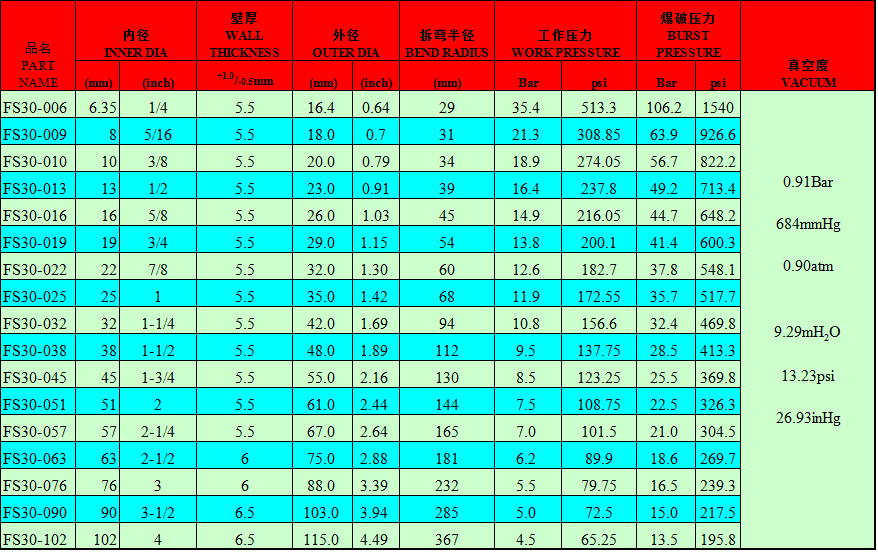

    2, The test in the parameter list is in accordance with the normal temperature and the standard atmospheric pressure state.

When the pressure is constant, the temperature rise by 100 degrees, the pressure will drop by 15%.

產品應用(yong)：

特別推薦用于(yu)具有耐油(you)(you)性(xing)能，符合食品(pin)級(ji)的要求，在化妝品(pin)類，食用油(you)(you)類，以及汽車類得(de)到廣泛的應用。

具有不老化，有良(liang)(liang)好的(de)耐腐性(xing)(xing)能，有良(liang)(liang)好的(de)機械性(xing)(xing)能和物理性(xing)(xing)能。抗(kang)拉性(xing)(xing)能好。

產品(pin)結(jie)構：

內(nei)層：內(nei)層為氟硅膠層（通(tong)常為乳白色或(huo)白色或(huo)黑色）

編(bian)織：四層(ceng)層(ceng)夾布網(wang)紋(wen)編(bian)織

鋼絲：采用(yong)單層(ceng)304不銹(xiu)鋼絲間距為5MM或不加鋼絲，

產品特性：

——工作溫度范圍‘-60oC / +180oC (-76oF / +356oF)在短(duan)時(shi)間內(nei)可達到  220oC (392oF)

——具有(you)不老化，有(you)良好的耐腐性能(neng)(neng)，有(you)良好的機械性能(neng)(neng)和物理性能(neng)(neng)。抗拉性能(neng)(neng)好.

品質認(ren)證(zheng)：

——硅(gui)膠軟管通(tong)過美國FDA 21 CFR 177.2600(食(shi)品和藥物管理(li)局(ju))食(shi)品級認證。

Product application:

Specially recommended for oil resistant properties, in compliance with the requirements of food grade.

Widely used in the industry of cosmetics, edible oil and automobiles with good aging resistance, good corrosion resistance,

good mechanical and physical properties and good tensile properties.

Product structure:

inner layer: fluorine rubber layer (usually milky white or white or black)

Weaving:4 layers of cloth woven mesh

Steel wire: single layer of 304 stainless steel wire, the spacing is 5mm or without wire added.

Product characteristics:

-The working temperature range: -60 to +180 degrees Celsius (or -76 to +356 degrees Fahrenheit) and it can reach 220 degrees Celsius (or 392 degree Fahrenheit) in a short period of time

-excellent aging resistance and corrosion resistance. Very good mechanical and phisical performance.Excellent tensile resistance.

Quality certification:

-silicone hose passes the United States FDA 21 CFR 177.2600 (food and Drug Administration) food grade certification.
