食品級PTFE不銹鋼編織軟管BT40

東莞市格雷特硅膠制品有限公司

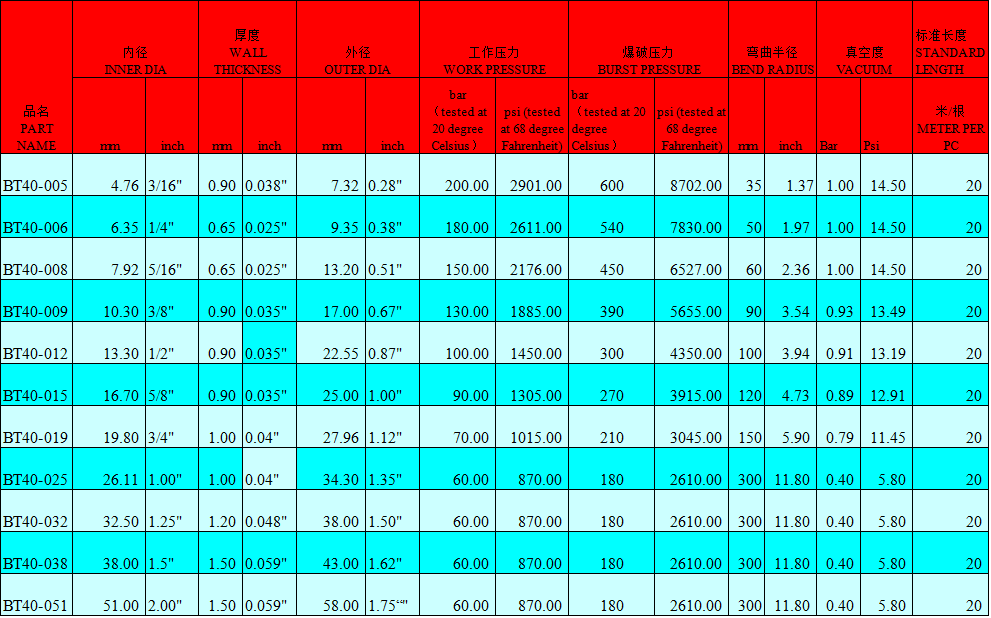

包覆光滑鐵氟龍（PTFE）軟管BT40系列技術參數

smooth PTFE hose

產品描述：

表層(ceng)采用(yong)(yong)鉑金硅膠包覆，中間采用(yong)(yong)加強(qiang)SS304不(bu)銹鋼絲(si)編織PTFE組合而成。廣(guang)泛(fan)的應用(yong)(yong)于通(tong)過食品(pin)(pin)，醫藥及(ji)化(hua)妝(zhuang)用(yong)(yong)品(pin)(pin)，生物工(gong)程的液體(ti)和(he)半流體(ti)。

標準長(chang)度(du)(du)為20米每卷，同時我(wo)們也可以根據客戶的要(yao)求生產規(gui)定(ding)的尺寸和(he)長(chang)度(du)(du)，膠管產品(pin)通過美(mei)國FDA級(ji)和(he)USP Class VI和(he)德國BFR認證。

——工作溫度范(fan)圍‘-60oC / +220oC 在短時(shi)間內可達到 260oC

——具有(you)很好(hao)耐強酸(suan)和強堿性能，有(you)極(ji)好(hao)的化學穩(wen)定性。可(ke)以(yi)耐高壓，內壁(bi)有(you)具有(you)很好(hao)耐磨性。

——具有很好彎曲性，內壁(bi)光滑清(qing)潔，易清(qing)洗不粘(zhan)水，用清(qing)洗物清(qing)洗后不附著任何殘留物，可(ke)采用高溫高壓蒸汽消毒和滅菌。

——無(wu)(wu)(wu)嗅、無(wu)(wu)(wu)味,完全無(wu)(wu)(wu)毒，不含(han)任何塑化劑和(he)添加劑成分。完全符(fu)合食品FDA和(he)生物醫用級USP VI的要求。

——這些(xie)管通常(chang)是外(wai)層為乳白色鉑金硫化(hua)硅膠。我們也可根據客戶所(suo)需(xu)顏色來訂(ding)制外(wai)層。

品質認證：

——鉑金硅膠軟管通過美國(guo)FDA 21 CFR 177.2600(食(shi)品和藥物管理局)食(shi)品級認證。

——鉑金硅膠軟(ruan)管符合(he)通(tong)過(guo)美國醫用USP Class VI級標(biao)準認(ren)證。

Product description:

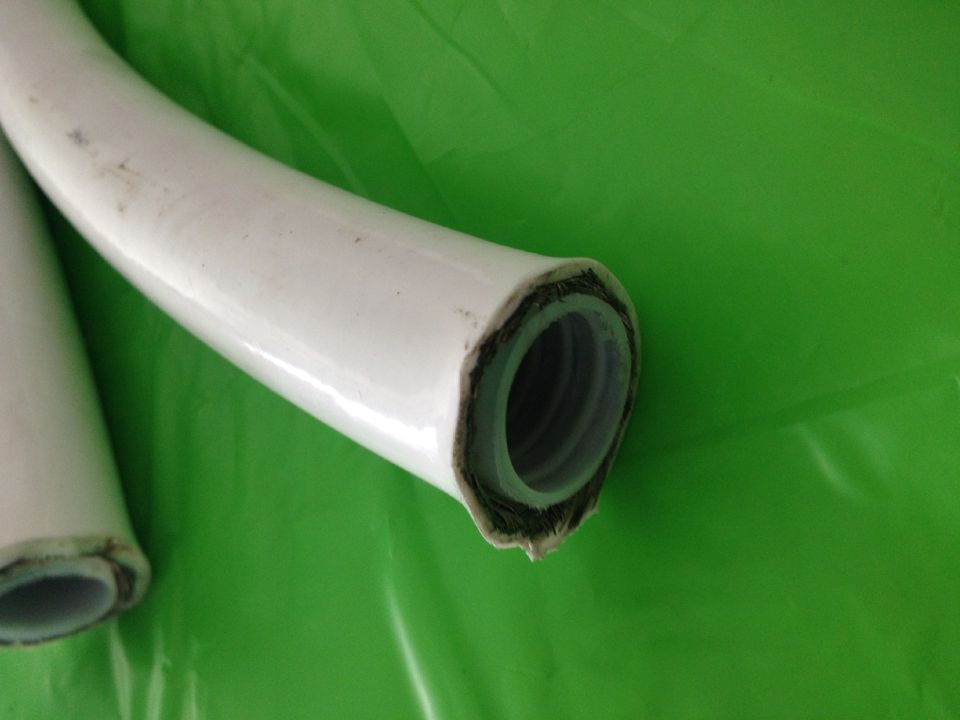

The surface layer is covered with platinum silicone and the middle layer is made of reinforced SS304 stainless steel wire woven braiding and PTFE.

Widely used to deliverying the liquid and semi fluid of food, medicine and cosmetic products, biological engineering.

-covered by platinum silione.

-Silicone hose is made by the reinforced 304 stainless steel wire braided PTFE and platinum silicone. Widely used in liquid and semi fluid food, medicine and cosmetic products, bio engineering.

-Standard length is 20 meters per roll, and we also can produce the specified size and length according to customer requirements. Our hose products has passed the certification

of the United States FDA grade and Class VI USP and German BFR.

Product characteristics:

-The working temperature range of -60 to +220 degrees Celsius and can reach 260 degrees Celsius in a short period of time

-Strong resistance of acid and alkali, excellent chemical stability, good resistance of high pressure and the inner wall has a very good abrasion performance.

-With a good bend, the inner wall is smooth and clean, easy to be washed, no water sticking,

After cleaned by cleaning materials, no residue remained. The steam disinfection and sterilization can be done under high temperature and high pressure.

-Odorless, tasteless, non-toxic, does not contain any additives and plasticizer. Fully comply with the requirements of food FDA and biological medical grade VI USP.

-The outer layer material is usually the milky white platinum vulcanized silicone. And the color of outer layer can be customized according to the customer's need.

Quality certification:

-Platinum silicone hoses pass the United States FDA 21 CFR 177.2600 (food and Drug Administration) food grade certification.

-Platinum silicone hose is in accordance with the United States Class VI USP grade standard certification.
