食品級PTFE不銹鋼編織軟管BW40

東莞市格雷特硅膠制品有限公司

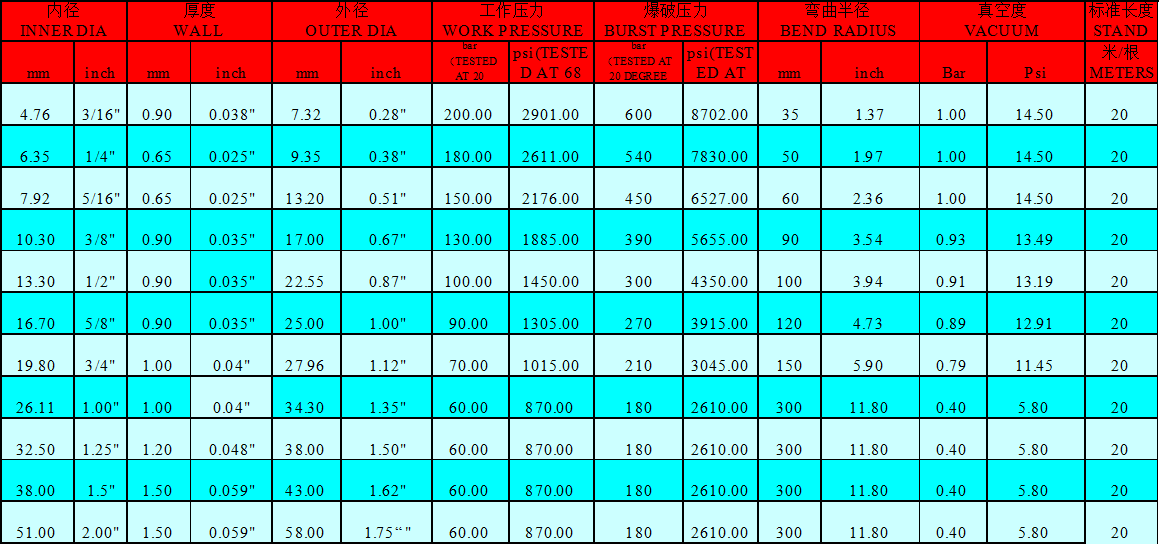

包覆波紋鐵氟龍（PTFE）軟管BW40系列技術參數

corrugated PTFE hose

產品結構：

內層：PTFE波紋狀，中間配有SS304不銹鋼編(bian)織網，

中層：SS304不銹鋼編織網

外徑：白(bai)色或(huo)透(tou)明硅膠

產品描述：

——工作(zuo)溫度范圍‘-60oC / +220oC 在短時(shi)間內可達到 260oC

——具(ju)有(you)很好耐(nai)強(qiang)酸(suan)和強(qiang)堿性(xing)能，有(you)極好的(de)化學穩定(ding)性(xing)。可以耐(nai)高壓，內壁有(you)具(ju)有(you)很好耐(nai)磨性(xing)。

——具有很(hen)好(hao)彎曲性，內壁光滑(hua)清潔，易(yi)清洗不(bu)粘水，用(yong)清洗物清洗后不(bu)附著任(ren)何殘留物，可采(cai)用(yong)高溫高壓蒸汽消(xiao)毒和滅(mie)菌(jun)。

——無(wu)嗅、無(wu)味,完全無(wu)毒，不(bu)含任(ren)何塑(su)化劑和添加(jia)劑成分(fen)。完全符合(he)食品FDA和生物(wu)醫(yi)用級USP VI的要求(qiu)。

——這些管(guan)通常(chang)是外層為乳白色或透明硅膠。我們(men)也可根(gen)據客(ke)戶所需(xu)顏色來訂制(zhi)外層。

配套接頭：

TC接(jie)(jie)頭（直通快速接(jie)(jie)頭316L），SMS接(jie)(jie)頭，DIN快接(jie)(jie)，CLAMP，CLOCK，J螺紋接(jie)(jie)頭，等材質為(wei)304或316L任客戶挑(tiao)選。

品質認證：

——硅膠軟管通過美國FDA 21 CFR 177.2600(食品(pin)和藥物(wu)管理局)食品(pin)級認證。

Product structure:

Inner layer: PTFE corrugated

Middle layer: SS304 stainless steel wire braided mesh

Outer Dia: white or transparent silicone

Product characteristics:

-The working temperature range of -60 to +220 degree Celsius and in a short period of time can reach 260 degrees Celsius.

-strong acid and alkali resistance is good, excellent chemical stability.Resistant to high pressure.The inner wall has a good wear resistance.

-With an excellent bend, the inner wall is smooth and clean, easy to be washed, no water sticking,

After cleaned by cleaning materials, no residue remained. The steam disinfection and sterilization can be done under high temperature and high pressure.

-Odorless, tasteless, non-toxic, does not contain any additives and plasticizer. Fully comply with the requirements of food FDA and biological medical grade USP.

-the outer layer of the hose is milky white silicone or transparent silicone. The color can be customized according to customer's needs

Supporting connectors:

TC connector (straight quick connector 316L), SMS connector, DIN quick connect, CLAMP, CLOCK, J threading connectors, etc,.The material is stainless steel 304 or 316L.

Quality certification:

-pass the United States FDA 21 CFR 177.2600 (food and Drug Administration) food grade certification.
