食品級PTFE不銹鋼編織軟管BT40

東莞市格雷特硅膠制品有限公司

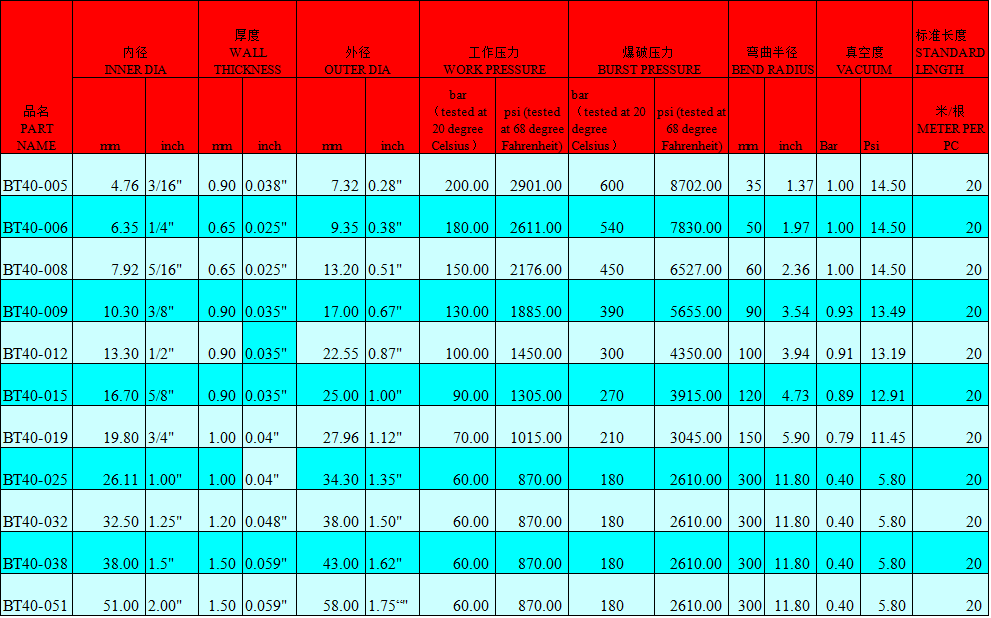

包覆光滑鐵氟龍（PTFE）軟管BT40系列技術參數

smooth PTFE hose

產品描述：

表層采用(yong)(yong)鉑(bo)金硅膠包覆，中間采用(yong)(yong)加強SS304不銹鋼(gang)絲編(bian)織PTFE組合而(er)成。廣泛的(de)應用(yong)(yong)于通過食品，醫藥及(ji)化妝(zhuang)用(yong)(yong)品，生(sheng)物工(gong)程的(de)液體(ti)和(he)半流體(ti)。

標準長(chang)度為20米(mi)每卷，同時我們也可以(yi)根據客戶的要求生產(chan)規定的尺寸和長(chang)度，膠管產(chan)品通過美國(guo)FDA級和USP Class VI和德國(guo)BFR認證。

——工作溫度范圍‘-60oC / +220oC 在短時(shi)間內(nei)可(ke)達到 260oC

——具(ju)有(you)很好(hao)耐(nai)強酸和強堿性能，有(you)極好(hao)的化學穩定性。可以耐(nai)高壓，內壁有(you)具(ju)有(you)很好(hao)耐(nai)磨(mo)性。

——具有很好彎(wan)曲性，內壁光滑(hua)清(qing)潔(jie)，易清(qing)洗不(bu)粘水，用清(qing)洗物(wu)清(qing)洗后不(bu)附著(zhu)任(ren)何殘(can)留物(wu)，可采(cai)用高(gao)溫高(gao)壓蒸汽消(xiao)毒和滅菌。

——無嗅、無味,完(wan)全無毒，不含(han)任(ren)何(he)塑化(hua)劑和(he)添加劑成分。完(wan)全符合食(shi)品FDA和(he)生物醫用(yong)級USP VI的要(yao)求(qiu)。

——這(zhe)些管通常是(shi)外層為乳白色(se)鉑金硫化硅膠。我們也可根據客(ke)戶(hu)所需顏色(se)來訂制外層。

品質認證：

——鉑金硅膠軟管(guan)通過美(mei)國FDA 21 CFR 177.2600(食品和藥物管(guan)理局(ju))食品級認(ren)證。

——鉑金硅膠(jiao)軟管符合通(tong)過美(mei)國醫用USP Class VI級標準(zhun)認證。

Product description:

The surface layer is covered with platinum silicone and the middle layer is made of reinforced SS304 stainless steel wire woven braiding and PTFE.

Widely used to deliverying the liquid and semi fluid of food, medicine and cosmetic products, biological engineering.

-covered by platinum silione.

-Silicone hose is made by the reinforced 304 stainless steel wire braided PTFE and platinum silicone. Widely used in liquid and semi fluid food, medicine and cosmetic products, bio engineering.

-Standard length is 20 meters per roll, and we also can produce the specified size and length according to customer requirements. Our hose products has passed the certification

of the United States FDA grade and Class VI USP and German BFR.

Product characteristics:

-The working temperature range of -60 to +220 degrees Celsius and can reach 260 degrees Celsius in a short period of time

-Strong resistance of acid and alkali, excellent chemical stability, good resistance of high pressure and the inner wall has a very good abrasion performance.

-With a good bend, the inner wall is smooth and clean, easy to be washed, no water sticking,

After cleaned by cleaning materials, no residue remained. The steam disinfection and sterilization can be done under high temperature and high pressure.

-Odorless, tasteless, non-toxic, does not contain any additives and plasticizer. Fully comply with the requirements of food FDA and biological medical grade VI USP.

-The outer layer material is usually the milky white platinum vulcanized silicone. And the color of outer layer can be customized according to the customer's need.

Quality certification:

-Platinum silicone hoses pass the United States FDA 21 CFR 177.2600 (food and Drug Administration) food grade certification.

-Platinum silicone hose is in accordance with the United States Class VI USP grade standard certification.
