波紋軟管SP80

工業用軟管SP80

Industrial hose SP80

注:1.標準生產長度為6米（特殊可訂(ding)做10米）。可以(yi)做切短(duan)。其(qi)它的內徑要(yao)求可以(yi)根據客戶的要(yao)求來訂(ding)制。

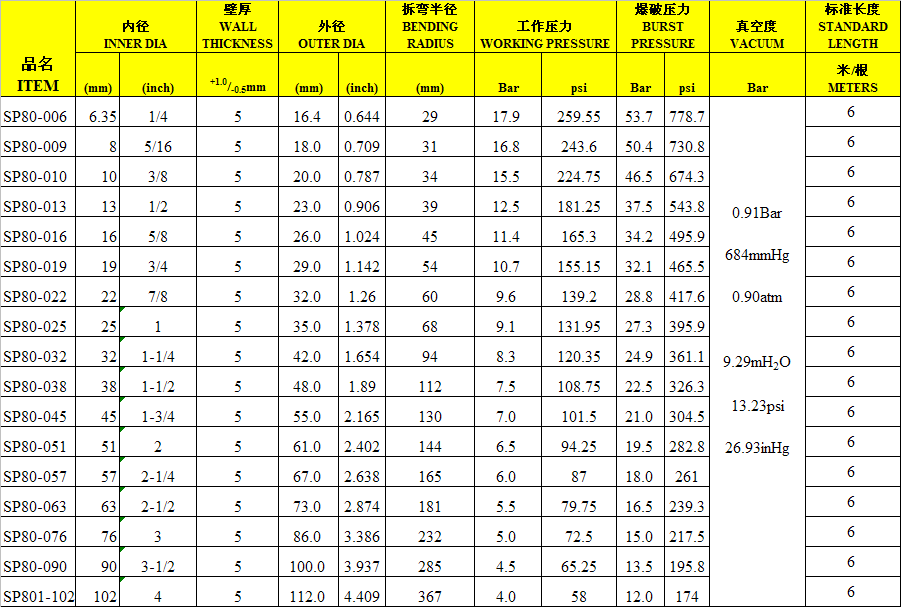

   2.在我們(men)在參數表中(zhong)測試是依(yi)照常溫(wen)，標準大氣壓狀態。當壓力不變(bian)時，溫(wen)度每上升幅度100度，壓力會下降百分之(zhi)15。

REMARKS:

1, Standard length is 6 meters and we can customize the hose length according to customers' needs.

2, The test in the parameter list is in accordance with the normal temperature and the standard atmospheric pressure state. When the pressure is constant, the temperature rise by 100 degrees, the pressure will drop by 15%.

產品應用：

特別推薦用于(yu)運(yun)輸(shu)或輸(shu)送工業用油(you)，汽車(che)發動機部件，卡車(che)，海洋管道等。

如汽車(che)卡車(che)類，發動機，發電機油(you)，工業用油(you)等。

產(chan)品(pin)結構：        ;

編(bian)織：二層夾布(bu)網紋編(bian)織

鋼(gang)絲：采用(yong)單層不銹鋼(gang)絲，間(jian)距(ju)為10MM

產品特性：

—工作溫(wen)度范圍‘-60oC / +180oC (-76oF / +356oF)在短時(shi)間內可達到  220oC (392oF)  ;

—具有很好彎曲性，內壁光(guang)滑(hua)清(qing)潔，易(yi)清(qing)洗不(bu)粘水，用(yong)清(qing)洗物(wu)清(qing)洗后不(bu)附著任何殘(can)留(liu)物(wu)。

—無(wu)嗅、無(wu)味,完全無(wu)毒，不含任(ren)何塑化劑和添加(jia)劑成分。

配(pei)套接頭：

TC接(jie)(jie)(jie)頭(tou)（直(zhi)通(tong)快速接(jie)(jie)(jie)頭(tou)316L），SMS接(jie)(jie)(jie)頭(tou)，DIN快接(jie)(jie)(jie)，CLAMP，CLOCK，J螺紋接(jie)(jie)(jie)頭(tou)，等(deng)材質為304或316L任客戶挑選。

品質認(ren)證：

—硅膠管依照(zhao)歐盟指令2008/95 / ECC的限制使用(yong)某些有害物(wu)質(RoHS)認可。

Product application:

Specially recommended for transportation or transportation of industrial oil,automotive engine parts, trucks, marine pipelines, etc.

Product structure:

Weaving: two layers of cloth woven mesh

Steel wire: single layer of stainless steel wire,with the spacing of 10mm.

Product characteristics:

-working temperature range -60 degree C / +180 degrees C (or -76 degrees F to +356 degree F)

in a short period of time,it can reach 220 degrees C (392 degrees F)

-With a good bend, the inner wall is smooth and clean, easy to be washed, no water sticking,After cleaned by cleaning materials, no residue remained

-odorless, tasteless, non-toxic,without any additives and plasticizer.

Supporting connectors:

TC connector (straight quick connector 316L), SMS connector, DIN quick connect, CLAMP, CLOCK, J threading connectors, etc,.The material is stainless steel 304 or 316L.

Quality certification:

-in accordance with EU directive 2008/95 / ECC restrictions on the use of certain hazardous substances (RoHS) approval.
