產品特性：

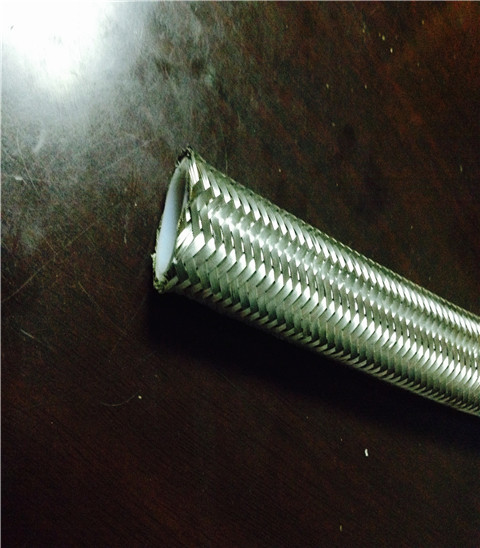

編織(zhi)管鐵氟龍（PTFE）BT20:
——工(gong)作溫(wen)度范圍‘-60oC / +220oC在短時間內可達(da)到 260oC
——具(ju)有(you)耐(nai)強酸和(he)強堿性(xing)能(neng)，有(you)很好(hao)的化(hua)學(xue)穩定性(xing)。可以耐(nai)高壓，內壁有(you)具(ju)有(you)很好(hao)耐(nai)磨性(xing)。
——具(ju)有彎曲性，內壁光(guang)滑清(qing)潔，易清(qing)洗不(bu)(bu)粘水，用(yong)清(qing)洗物清(qing)洗后(hou)不(bu)(bu)附著任何殘(can)留物，可采用(yong)高溫高壓蒸汽消(xiao)毒(du)和滅(mie)菌。
——具有的柔韌性(xing)，耐磨光滑(hua)。環保(bao)性(xing)能(neng)好。
品質認證：
——編(bian)織管鐵氟龍通過美國FDA 21 CFR 177.2600,食品級認證。符(fu)合ROHS環保標準
Product characteristics:
-The working temperature range of -60 to +220 degree Celsius and in a short period of time can reach 260 degrees Celsius.
-strong acid and alkali resistance is good, excellent chemical stability.Resistant to high pressure.The inner wall has a good wear resistance.
-With an excellent bend, the inner wall is smooth and clean, easy to be washed, no water sticking,
After cleaned by cleaning materials, no residue remained. The steam disinfection and sterilization can be done under high temperature and high pressure.
-good flexibility, wear resistance and smooth. Environmental protection performance is good
Quality certification:
- Braided PTFE Smooth Hose pass the United States FDA 21 CFR 177.2600 (food and Drug Administration) food grade certification.
- Braided PTFE Smooth Hose ROHS grade standard certification.
| 編織管鐵氟龍（PTFE）BT20 Braided PTFE Smooth Hose BT20 | |||||||||||||||
| 品名 PART NAME | 內徑 INNER DIA | 壁厚 WALL THICKNESS | 外徑 OUTER DIA | 工作壓力 WORK PRESSURE | 最大爆破壓力 BURST PRESSURE | 拆彎半徑 BEND RADIUS | 真空度 VACUUM | 標準長度 STANDARD LENGTH | |||||||
| (mm) | (inch) | +1.0/ -0.5mm | +0.04/0.02" | (mm) | (inch) | Bar（20oC） | psi（68oF） | Bar（20oC） | psi（68oF） | mm | inch | Bar | Psi | 米/根 M/ PC | |
| BT20-005 | 4.76 | 3/16" | 0.75 | 0.30 | 8.00 | 0.32" | 200.00 | 2901.00 | 600 | 8702.00 | 35 | 1.37 | 1.00 | 14.50 | 20 |
| BT20-006 | 6.35 | 1/4" | 0.75 | 0.3 | 9.30 | 0.35" | 180.00 | 2611.00 | 540 | 7830.00 | 50 | 1.97 | 1.00 | 14.50 | 20 |
| BT20-008 | 7.92 | 5/16" | 0.60 | 0.23 | 12.30 | 0.48" | 150.00 | 2176.00 | 450 | 6527.00 | 60 | 2.36 | 1.00 | 14.50 | 20 |
| BT20-009 | 9.52 | 3/8" | 0.65 | 0.35 | 12.80 | 0.51" | 130.00 | 1885.00 | 390 | 5655.00 | 90 | 3.54 | 0.93 | 13.49 | 20 |
| BT20-012 | 12.70 | 1/2" | 0.80 | 0.38 | 17.80 | 0.91" | 100.00 | 1450.00 | 300 | 4350.00 | 100 | 3.94 | 0.91 | 13.19 | 20 |
| BT20-015 | 15.80 | 5/8" | 0.80 | 0.38 | 21.80 | 0.87" | 90.00 | 1305.00 | 270 | 3915.00 | 120 | 4.73 | 0.89 | 12.91 | 20 |
| BT20-019 | 19.05 | 3/4" | 1.00 | 0.40 | 27.00 | 1..08" | 70.00 | 1015.00 | 210 | 3045.00 | 150 | 5.90 | 0.79 | 11.45 | 20 |
| BT20-025 | 25.40 | 1.00" | 1.00 | 0.40 | 32.20 | 1.25" | 60.00 | 870.00 | 180 | 2610.00 | 300 | 11.80 | 0.40 | 5.80 | 20 |
| BT20-032 | 32.00 | 1.00" | 1.00 | 0.40 | 40.20 | 1.53" | 46.00 | 870.00 | 180 | 2610.00 | 400 | 15.80 | 0.40 | 5.80 | 20 |
| BT20-038 | 38.00 | 1.5" | 1.20 | 0.43 | 47.80 | 1.85" | 30.00 | 870.00 | 180 | 2610.00 | 450 | 17.80 | 0.40 | 5.80 | 20 |
| BT20-051 | 51.00 | 2.00" | 1.50 | 0.58 | 60.50 | 2.30" | 25.00 | 870.00 | 180 | 2610.00 | 450 | 17.80 | 0.40 | 5.80 | 10 |
