透明PTFE四氟波紋軟管BW20

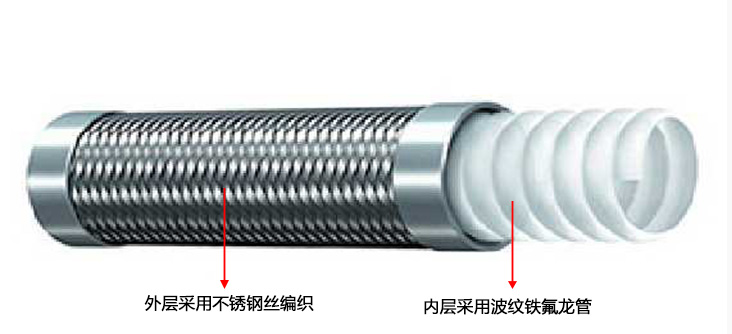

產品結構：

內層：PTFE波紋狀，中間配有SS304不銹鋼(gang)編織網，

外(wai)層：SS304不銹鋼(gang)編織網

產品描述：

——工作(zuo)溫度范圍‘-60oC / +220oC 在短時間內可達到(dao) 260oC

——具有(you)耐(nai)強酸和強堿性能(neng)，有(you)好(hao)的化(hua)學穩定性。可以耐(nai)高(gao)壓，內壁有(you)具有(you)很好(hao)耐(nai)磨性。

——具有彎(wan)曲(qu)性，內壁光滑清潔，易清洗不粘水，用清洗物清洗后不附著任何(he)殘留物，可采(cai)用高(gao)溫(wen)高(gao)壓蒸汽(qi)消毒和滅菌。

——無(wu)嗅、無(wu)味,完全(quan)(quan)無(wu)毒，不含任何塑化劑(ji)和添加劑(ji)成分。完全(quan)(quan)符合食品(pin)FDA和生物醫用(yong)級(ji)USP VI的要(yao)求。

——這些管(guan)通常是外(wai)層為(wei)乳白色或透(tou)明硅膠(jiao)。我們也可根據(ju)客(ke)戶(hu)所需顏色來訂制外(wai)層。

配套接頭：

TC接頭(tou)（直通(tong)快(kuai)(kuai)速接頭(tou)316L），SMS接頭(tou)，DIN快(kuai)(kuai)接，CLAMP，CLOCK，J螺紋接頭(tou)，等材質為(wei)304或316L任客戶挑選。

品質認證：

——硅(gui)膠軟管通過美國FDA 21 CFR 177.2600(食品和藥(yao)物管理局(ju))食品級(ji)認證(zheng)。

Product structure:

Inner layer: PTFE corrugated

Middle layer: SS304 stainless steel wire braided mesh

Outer Dia: white or transparent silicone

Product characteristics:

-The working temperature range of -60 to +220 degree Celsius and in a short period of time can reach 260 degrees Celsius.

-strong acid and alkali resistance is good, excellent chemical stability.Resistant to high pressure.The inner wall has a good wear resistance.

-With an excellent bend, the inner wall is smooth and clean, easy to be washed, no water sticking,

After cleaned by cleaning materials, no residue remained. The steam disinfection and sterilization can be done under high temperature and high pressure.

-Odorless, tasteless, non-toxic, does not contain any additives and plasticizer. Fully comply with the requirements of food FDA and biological medical grade USP.

-the outer layer of the hose is milky white silicone or transparent silicone. The color can be customized according to customer's needs

Supporting connectors:

TC connector (straight quick connector 316L), SMS connector, DIN quick connect, CLAMP, CLOCK, J threading connectors, etc,.The material is stainless steel 304 or 316L.

Quality certification:

-pass the United States FDA 21 CFR 177.2600 (food and Drug Administration) food grade certification.
