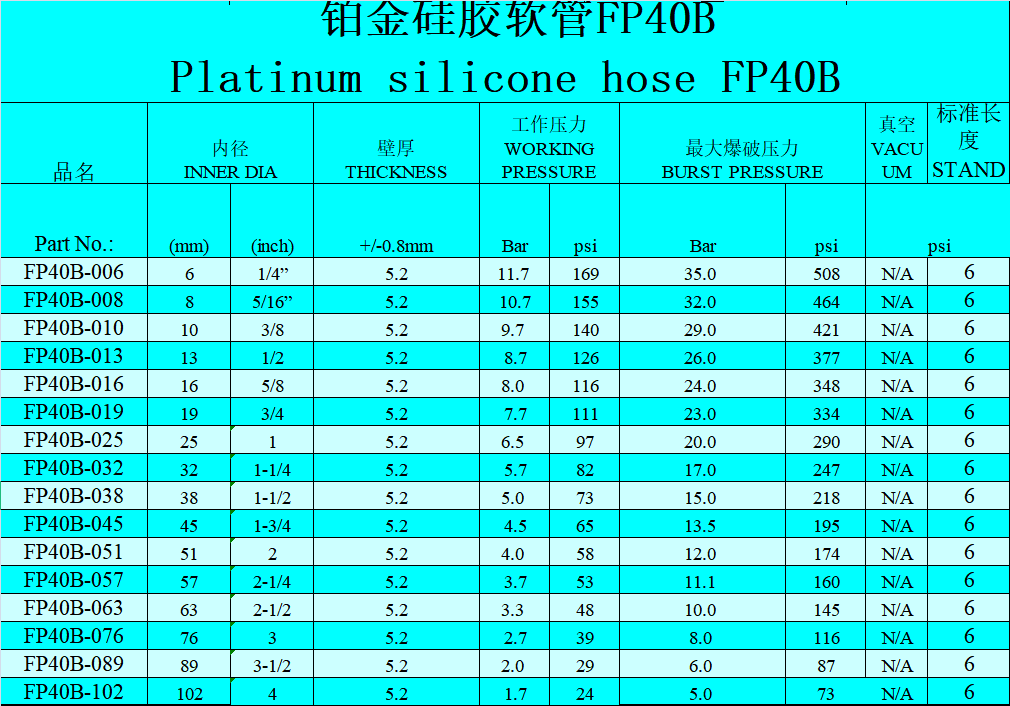

四層網紋編織增強鉑金硅膠管FP40B

注：1.測試(shi)條件為：常溫(wen)常壓(ya)狀態下測試(shi)（室溫(wen)為20度(du)），經過嚴格測試(shi)溫(wen)度(du)每升高100度(du)，壓(ya)力會降低15%，

2.標準長(chang)度為6米(mi),如有特殊要求可(ke)以(yi)(yi)定做10米(mi).可(ke)以(yi)(yi)來(lai)電咨(zi)詢(xun)訂購.

產品應用：

膠(jiao)管(guan)光滑的內外壁(bi),有利于(yu)(yu)軟管(guan)的清洗和消毒滅菌，這種只適(shi)用于(yu)(yu)普通壓力的傳(chuan)輸(shu)，可以用于(yu)(yu)牛奶，飲料以及(ji)純凈水類(lei)輸(shu)送(song)，

不建議用(yong)于(yu)抽吸液體和(he)抽吸泵類物質。

產品描述：

鉑金硫化(hua)硅膠軟管(guan)FP40系(xi)列采用鉑金硫化(hua)硅膠和四層加(jia)強聚(ju)脂(zhi)布結構，

標準長(chang)度為6米，最長(chang)為10米。同時我們也可以根據(ju)客(ke)戶的要(yao)求(qiu)生產規(gui)定的尺寸(cun)和長(chang)度，膠管產品(pin)通過美(mei)國FDA級和USP Class VI和德國BFR認證。

產品特性：

FP40系列硅膠軟管

——工作溫度(du)范圍(wei)‘-60oC / +180oC (-76oF / +356oF)在短-時間(jian)內可達(da)到  220oC (392oF)

——內壁光滑清潔，易清洗不(bu)粘水，用(yong)清洗物清洗后不(bu)附(fu)著(zhu)任(ren)何殘留物，可(ke)采用(yong)高溫高壓蒸汽消毒和滅菌。

——無(wu)嗅、無(wu)味(wei),完全(quan)無(wu)毒，不含(han)任何塑化劑(ji)和添加劑(ji)成分。完全(quan)符(fu)合食(shi)品FDA和生物醫用級USP的要求。

——這些管通常是乳白色。我們也(ye)可根據客戶(hu)所需顏(yan)色來訂(ding)制。

品質認證：

——可達(da)到FDA，BfR，USP，ISO10993，NSF51，食品級(ji)的(de)要求(qiu)。

Note:

1 test conditions: tested under constant temperature and atmospheric pressure state (room temperature is 20 degrees)

2 after a strict test,when the temperature is going up by every 100 degrees Celsius, the pressure will be reduced by 15%,

Product application:

The hose has very smooth wall inside and outside, which is good for cleaning and steriliztion. It is only applicable to ordinary pressure transmission,

and can be used for deliverying milk, beverages, as well as purified water with no recommendation for liquid suction and suction pump.

Product description:

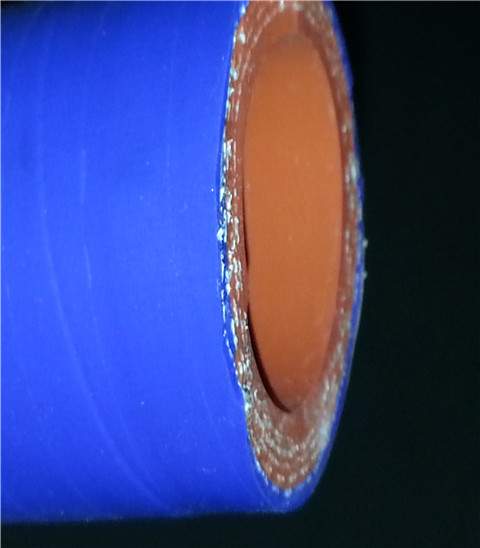

-The hose is made by the platinum vulcanized silicone and 4 layers reinforced polyester fabric structure.

-Standard length is 6 meters or speially 10 meters. At the same time, we can customize the hose length according to customers' needs. Our hose products has passed the United States FDA grade and Class VI USP and German BFR certification.

Product characteristics:

-The working temperature range of -60 to +180 degree Celsius (-76 to +356 degrees Fahrenheit) and can reach 220 degrees Celsius (392 degrees Fahrenheit) in a short period of time.

-the inner wall is smooth and clean, easy to be washed, no water sticking,

After cleaned by cleaning materials, no residue remained. The steam disinfection and sterilization can be done under high temperature and high pressure.

-Odorless, tasteless, non-toxic, does not contain any additives and plasticizer. Fully comply with the requirements of food FDA and biological medical grade VI USP.

-these hoses are usually milky white color. The color of hose can be can customized according to customer's needs.

Quality certification:

-meet the requirements of FDA, BFR, USP, ISO10993, NSF51 and medical grade.
