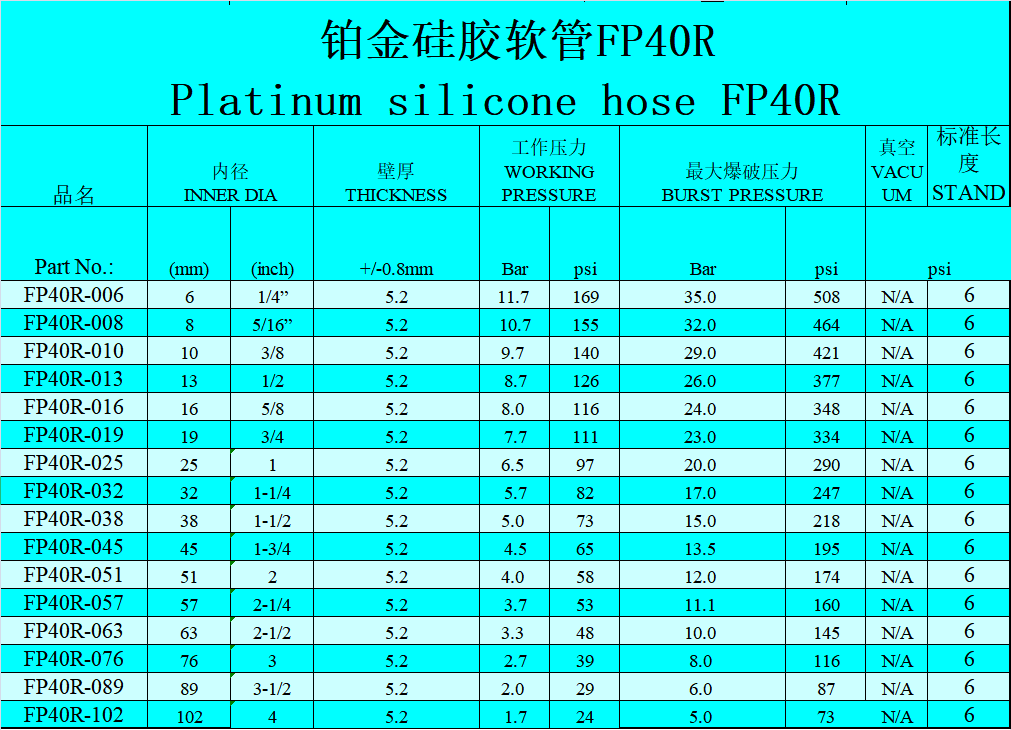

四層網紋編織增強鉑金硅膠管FP40R

注：1.測(ce)試條件為(wei)：常溫常壓狀態下(xia)測(ce)試（室溫為(wei)20度），經過嚴格(ge)測(ce)試溫度每(mei)升高100度，壓力會(hui)降低15%，

2.標(biao)準長(chang)度為6米(mi)(mi),如有(you)特殊要(yao)求可以定做(zuo)10米(mi)(mi).可以來電咨詢訂購.

產品應用：

膠管光(guang)滑的(de)(de)(de)內外壁(bi),有利于(yu)(yu)軟管的(de)(de)(de)清洗(xi)和消毒滅菌，這種只(zhi)適(shi)用于(yu)(yu)普通壓(ya)力的(de)(de)(de)傳輸(shu)，可以(yi)用于(yu)(yu)牛奶(nai)，飲料以(yi)及純凈水類輸(shu)送，

不建議用(yong)于抽吸液體和抽吸泵類物質。

產品描述：

鉑金硫化(hua)硅膠軟管FP40系(xi)列(lie)采用鉑金硫化(hua)硅膠和四(si)層加強聚(ju)脂(zhi)布(bu)結(jie)構，

標準長(chang)度(du)為(wei)6米，最長(chang)為(wei)10米。同時(shi)我們也可以根據客戶的要求生(sheng)產規(gui)定的尺寸和長(chang)度(du)，膠管產品通過美國(guo)FDA級和USP Class VI和德國(guo)BFR認證。

產品特性：

FP40系列硅膠軟管

——工作溫(wen)度范圍‘-60oC / +180oC (-76oF / +356oF)在短-時間內(nei)可(ke)達到  220oC (392oF)

——內壁光滑清潔，易清洗不粘水(shui)，用清洗物清洗后不附著任何殘留物，可采用高溫高壓蒸汽消毒(du)和滅菌。

——無嗅、無味(wei),完(wan)全(quan)無毒，不(bu)含(han)任何塑(su)化劑和添加劑成分。完(wan)全(quan)符(fu)合(he)食品FDA和生物醫用級(ji)USP的要求。

——這些管通常是乳白色。我們也可根(gen)據客戶(hu)所需顏色來訂制。

品質認證：

——可達到FDA，BfR，USP，ISO10993，NSF51，食品級(ji)的(de)要求。

Note:

1 test conditions: tested under constant temperature and atmospheric pressure state (room temperature is 20 degrees)

2 after a strict test,when the temperature is going up by every 100 degrees Celsius, the pressure will be reduced by 15%,

Product application:

The hose has very smooth wall inside and outside, which is good for cleaning and steriliztion. It is only applicable to ordinary pressure transmission,

and can be used for deliverying milk, beverages, as well as purified water with no recommendation for liquid suction and suction pump.

Product description:

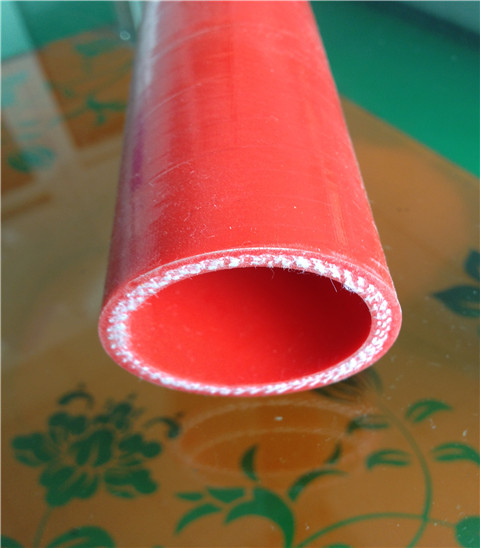

-The hose is made by the platinum vulcanized silicone and 4 layers reinforced polyester fabric structure.

-Standard length is 6 meters or speially 10 meters. At the same time, we can customize the hose length according to customers' needs. Our hose products has passed the United States FDA grade and Class VI USP and German BFR certification.

Product characteristics:

-The working temperature range of -60 to +180 degree Celsius (-76 to +356 degrees Fahrenheit) and can reach 220 degrees Celsius (392 degrees Fahrenheit) in a short period of time.

-the inner wall is smooth and clean, easy to be washed, no water sticking,

After cleaned by cleaning materials, no residue remained. The steam disinfection and sterilization can be done under high temperature and high pressure.

-Odorless, tasteless, non-toxic, does not contain any additives and plasticizer. Fully comply with the requirements of food FDA and biological medical grade VI USP.

-these hoses are usually milky white color. The color of hose can be can customized according to customer's needs.

Quality certification:

-meet the requirements of FDA, BFR, USP, ISO10993, NSF51 and medical grade.
